The R290 Monoblock Top-Blow Air Source Inverter Heat Pump JMU120HC provides homes with energy-efficient heating, cooling and hot water solutions. This top-blown unit uses R290 refrigerant and has an A+++ rating for low power consumption. The patented top-blow design solves installation difficulties in tight spaces and reduces environmental impact. Despite its compact size, it provides reliable climate control from -25°C to +43°C. The electronic control system maintains stable temperatures while optimizing efficiency. With quiet operation, smart controls and app connectivity, the R290 Monoblock heat pump brings customized comfort and savings to your home.
| Ambient Temp. (℃) (Dry Bulb temp.) | -25 | -20 | -15 | -10 | -5 | 0 | 5 | 10 | 15 | 21 | 25 |
| Heating Capacity (W) (Outlet Water Temp. 35℃) | 7.22 | 7.99 | 8.84 | 9.78 | 10.49 | 11.26 | 12.08 | 13.17 | 14.50 | 15.70 | 16.31 |
| Heating Capacity (W) (Outlet Water Temp. 45℃) | 5.90 | 6.70 | 7.60 | 8.62 | 9.49 | 10.45 | 11.50 | 12.54 | 13.80 | 14.95 | 15.53 |
| Heating Capacity (W) (Outlet Water Temp. 55℃) | 5.10 | 6.00 | 7.06 | 8.30 | 9.14 | 10.06 | 11.07 | 12.07 | 13.28 | 14.39 | 14.94 |

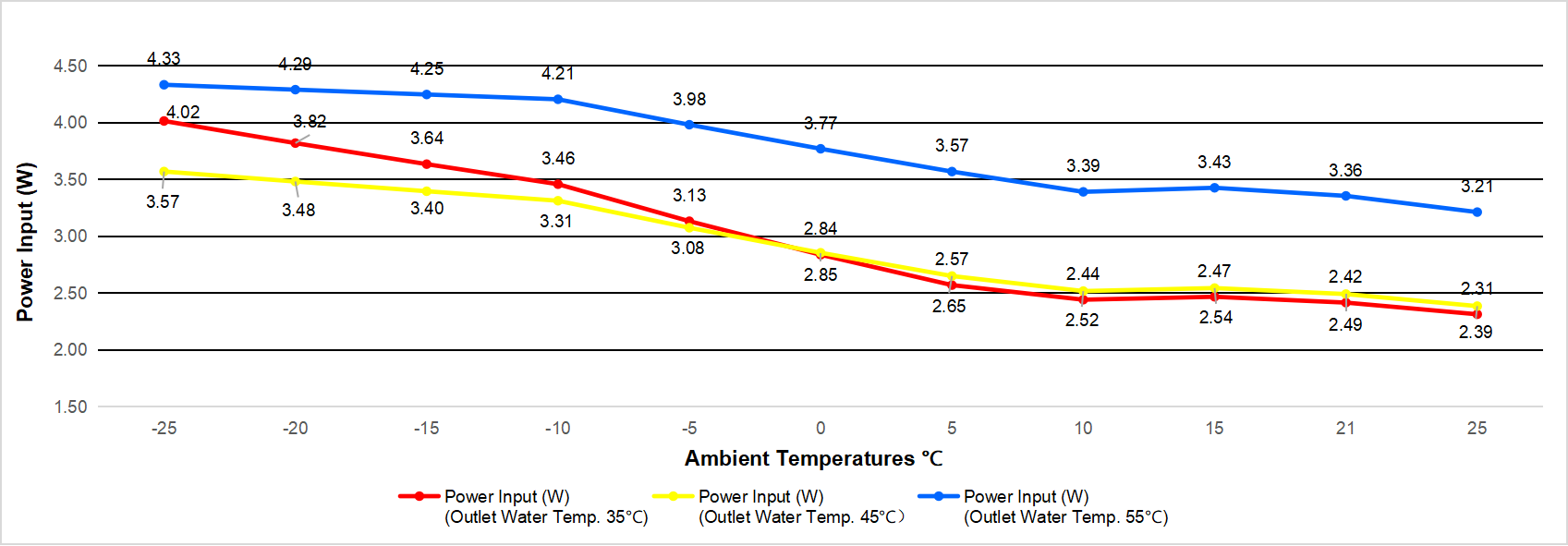

| Power Input (W) (Outlet Water Temp. 35℃) | 4.02 | 3.82 | 3.64 | 3.46 | 3.13 | 2.84 | 2.57 | 2.44 | 2.47 | 2.42 | 2.31 |
| Power Input (W) (Outlet Water Temp. 45℃） | 3.57 | 3.48 | 3.40 | 3.31 | 3.08 | 2.85 | 2.65 | 2.52 | 2.54 | 2.49 | 2.39 |
| Power Input (W) (Outlet Water Temp. 55℃) | 4.33 | 4.29 | 4.25 | 4.21 | 3.98 | 3.77 | 3.57 | 3.39 | 3.43 | 3.36 | 3.21 |

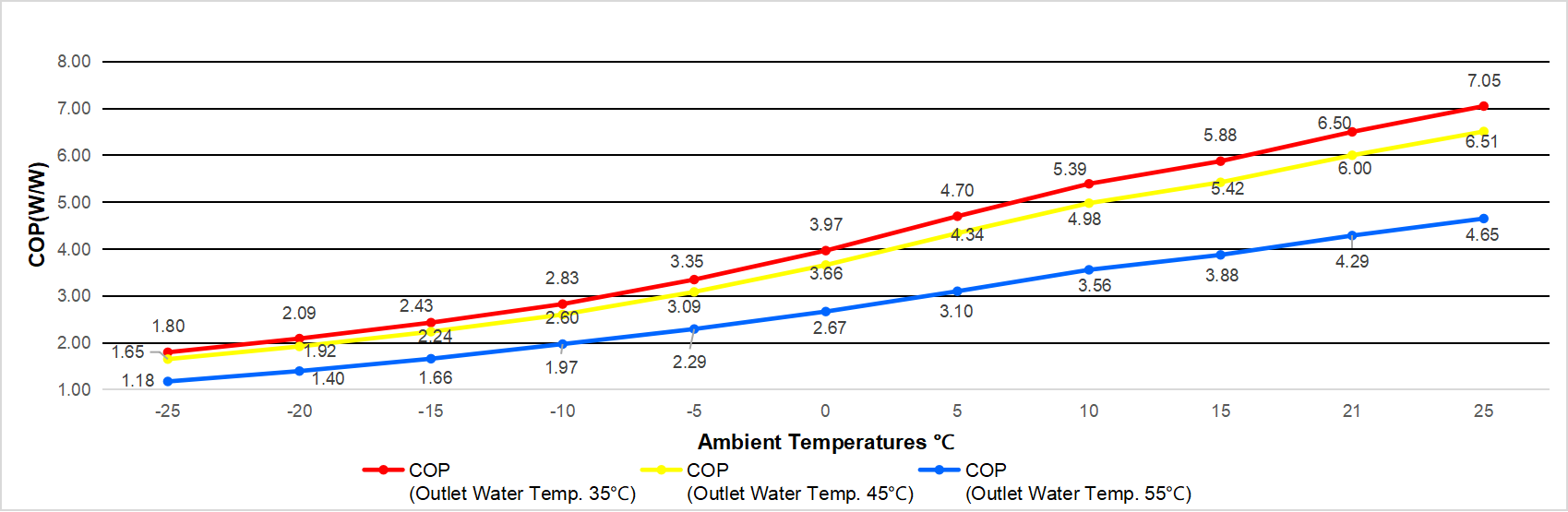

| COP (Outlet Water Temp. 35℃) | 1.80 | 2.09 | 2.43 | 2.83 | 3.35 | 3.97 | 4.70 | 5.39 | 5.88 | 6.50 | 7.05 |
| COP (Outlet Water Temp. 45℃) | 1.65 | 1.92 | 2.24 | 2.60 | 3.09 | 3.66 | 4.34 | 4.98 | 5.42 | 6.00 | 6.51 |
| COP (Outlet Water Temp. 55℃) | 1.18 | 1.40 | 1.66 | 1.97 | 2.29 | 2.67 | 3.10 | 3.56 | 3.88 | 4.29 | 4.65 |
| Model | JMU120HC |
| Heating Capacity Range (kW) | 3.2-12 |
| Heating (A7/6℃,W30/35℃) | |
| Heating Capacity (kW) | 12.00 |
| Power Input (kW) | 2.55 |
| COP | 4.70 |
| Heating (A7/6℃,W40/45℃) | |
| Heating Capacity (kW) | 12.00 |
| Power Input (kW) | 3.29 |
| COP | 3.65 |
| Heating (A7/6℃,W47/55℃) | |
| Heating Capacity (kW) | 11.00 |
| Power Input (kW) | 3.55 |
| COP | 3.10 |
| Cooling (A35/24℃,W23/18℃) | |
| Cooling Capacity (kW) | 10.00 |
| Power Input (kW) | 2.56 |
| EER | 3.90 |
| Cooling (A35/24℃,W12/7℃) | |
| Cooling Capacity (kW) | 10.00 |
| Power Input (kW) | 3.57 |
| EER | 2.80 |
| General Information | |
| Power Supply | 220V~240V/50Hz/60Hz |
| Refrigerant | R290 |
| Water Outlet Temperature/35℃ | A+++ |
| Water Outlet Temperature/55℃ | A++ |
| Operating Air Temp.(℃) | -25~43 |
| Max.Outlet Water Temp(℃) | 75 |
| Max Power Input (kW) | 5.29 |
| Max Current (A) | 23 |
| General Configuration | |
| Controller | 5.0 inches Colorful LED Touchscreen |
| DTU (Data Transfer Unit) | Yes (WIFI Version) |
| WIFI Control | Yes |
| Compressor | HIGHLY (Rotary) |
| Fan Quantity | 2 |
| Heat Exchanger | Danfoss Plate Heat Exchanger |
| EEV (Electronic Expansion Valve) | SANHUA |
| Built-in Circulating Pump | SHIMGE (Inverter) |
| Water Flow Meter | SIKA (Original German-Made) |
| Deaerator | Yes |
| Casing Material | Galvanized Sheet |
| Water Pipe Connection (inch) | G1' (Male thread) |
| Noise Level at 1m dB(A) | 53.2 |
| Water Flow (m³/h) | 2.06 |
| Water Pressure Drop (kPa) | 15 |
| Min/Max heating water pressure (bar) | 2.0/10.0 |
| Net Dimensions ( L/W/H ) mm | 1130*630*935 |
| Package Dimensions ( L/W/H ) mm | 1220*730*1095 |
| Net Weight KG | 142.5 |
| Gross Weight KG | 187 |
| Loading quantity 20GP/40GP,40HQ pcs | 26/56/56 |
Absolutely, this heat pump aligns with the growing demand for energy-efficient solutions, making it an eco-friendly choice for those aiming to reduce their carbon footprint.
Yes, the top-blow design retains the heat pump’s capability to provide effective heating during colder periods and cooling during warmer seasons, ensuring year-round comfort.
The top-blow design is a departure from traditional side-blow setups, intended to minimize the heat pump’s impact on its surroundings while optimizing performance. Top air outlet and side air inlet optimize the air circulation path and improve heat exchange efficiency.
The primary goal of the “Top-Blow” design is to reduce the heat pump’s impact on the environment around it, creating a more efficient and less obtrusive solution.
The “top-blow” heat pump is designed for narrow and limited installation spaces and villas with gardens. It can be installed in row houses, townhouses, apartments, etc.
